Khoom Taw Qhia

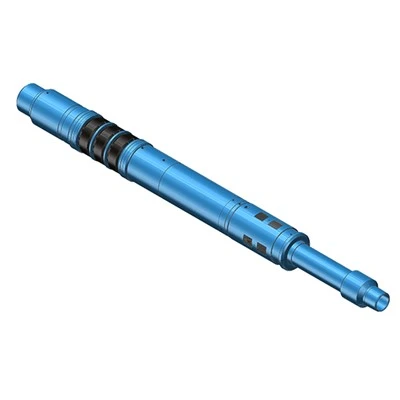

Peb Ib Leeg Grip Retrievable Packer yog peb-thooj ntim cov txheej txheem uas muab kev sib khi zoo thiab txhim khu kev qha rau koj lub qhov dej roj thiab roj. Nruab nrog lub tshuab J-hom tsis siv neeg, lub hnab ntim khoom no tuaj yeem teeb tsa tau yooj yim thiab tsis kaw, thiab tuaj yeem rov pib dua ntau zaus tom qab khiav hauv qhov dej.
Cov packer nta rocker hom slips uas ua kom muaj kev ruaj ntseg anching nyob rau hauv qhov zoo-bore, txawm nyob rau hauv lub hardest tej yam kev mob. Tsis tas li ntawd, qhov chaw tswj kev sib xyaw ua ke bypass thiab sib npaug ntawm lub valve muab kev tswj xyuas meej ntawm cov dej ntws, txhim kho tag nrho cov txiaj ntsig ntawm qhov dej.
Khoom nta
1. Peb daim packing element system.
2. Lub tshuab J-hom tsis siv neeg tuaj yeem ua tiav qhov kev teeb tsa thiab tsis siv, thiab tuaj yeem teeb tsa ntau zaus tom qab khiav hauv qhov dej.
3. Rocker hom Slips.
4. Nto tswj ua ke bypass thiab equalizing valve.
5. Qhov pom zoo ua haujlwm kub rau cov pos hniav yog nyob rau hauv 148C (300 degree F).
Cim npe nrov: Tuam Tshoj ib leeg tuav retrievable packer manufacturers, lwm tus neeg, Hoobkas
| OD (hauv) | Casing Wt (Ibs/ft) | Kev teeb tsa Range Min (hauv) | Teem caij Max (hauv) | Tool OD (hauv) | Tool ID (hauv) | Kev sib txuas xov |
| 4 | 9.5-11.6 | 3.428 | 3.546 | 3.303 | 1.5 | 2 3/8'' EU |
| 4 1/2 | 15.1 | 3.754 | 3.826 | 3.62 | ||
| 9.5-13.5 | 3.91 | 4.09 | 3.771 | 1.95 | ||
| 5 | 15-18 | 4.25 | 4.408 | 4.125 | ||
| 11.5-15 | ||||||
| 5 1/2 | 26 | 4.408 | 4.56 | 4.25 | ||
| 20-23 | 4.625 | 4.778 | 4.5 | 1.969 | ||
| 15.5-20 | 4.778 | 4.95 | 4.641 | |||
| 13-15.5 | ||||||
| 5 3/4 | 22.5 | 4.95 | 5.19 | 4.781 | ||
| 6 | 26 | |||||
| 20-23 | 5.191 | 5.39 | 5.062 | |||
| 15-18 | 5.391 | 5.56 | 5.156 | |||
| 6 5/8 | 34 | 5.561 | 5.609 | 5.406 | ||
| 28-32 | 5.61 | 5.791 | 5.484 | |||
| 24-28 | 5.791 | 5.921 | 5.484 | |||
| 5 1/2 | 20-23 | 4.625 | 4.777 | 4.5 | 2.375 | 2 7/8''EU |
| 17-20 | 4.778 | 4.892 | 4.641 | |||
| 13-15.5 | 4.893 | 5.044 | 4.781 | |||
| 6 5/8 | 28-32 | 5.622 | 5.791 | 5.475 | ||
| 6 5/8 | 24-28 | 5.791 | 5.921 | 5.588 | ||
| 7 | 38 | 5.791 | 5.921 | 5.588 | ||
| 6 5/8 | 17-20 | 5.922 | 6.135 | 5.781 | 2.5 | |
| 7 | 32-35 | 5.922 | 6.135 | 5.781 | ||
| 6 5/8 | 24 | 5.83 | 5.937 | 5.656 | ||
| 7 | 38 | 5.83 | 5.937 | 5.656 | ||
| 6 5/8 | 17-20 | 5.938 | 6.135 | 5.812 | ||
| 7 | 32-35 | 5.938 | 6.135 | 5.812 | ||
| 26-29 | 6.136 | 6.276 | 5.968 | |||
| 20-26 | 6.276 | 6.456 | 6.078 | |||
| 7 5/8 | 33.7-39 | 6.579 | 6.797 | 6.453 | ||
| 24-29.7 | 6.798 | 7.025 | 6.672 | |||
| 20-24 | 7.025 | 7.125 | 6.812 | 3 1/2''EU | ||
| 8 5/8 | 44-49 | 7.511 | 7.687 | 7.312 | 3.469 | |
| 32-40 | 7.688 | 7.921 | 7.531 | |||
| 20-28 | 7.922 | 8.191 | 7.781 | |||
| 9 5/8 | 47-53.5 | 8.343 | 8.681 | 8.218 | 3.92 | |
| 40-47 | 8.681 | 8.835 | 8.437 | |||
| 29.3-36 | 8.836 | 9.063 | 8.593 |
